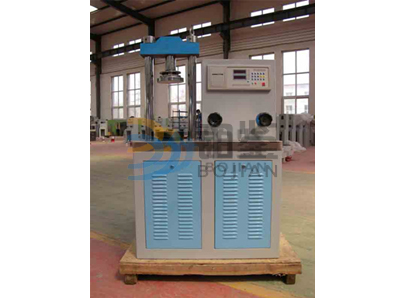

Product name：Digital display type cement pressure testing machine
Product model：
Product range：00KN
Immediate consultation
Online Message
This digital display cement pressure testing machine is used for the test of compressive strength of building materials such as foam, aerated brick, aerated concrete specimen and cement, cement sand and red brick.
Hydraulic loading, electronic measurement, load digital display, loading rate display, maximum load maintenance, overload protection and power outage data retention.
1. 30 tons pressure test machine host: one.
2. Full digital control system: one set.
3. High precision pressure sensor: one.
4. High quality hydraulic oil source: one set.
5. Domestic ac motor of pressure testing machine: one.
6. To meet the needs of customers: a set of anti-pressure accessories.
7. Concrete and brick folding jig: one set (optional, standard and not included)
1. Maximum test force: 300KN
2. The relative error of the indication value: + 1%
3, the rated pressure of the hydraulic pump: 25MPa
4. The diameter of the roll resistant roll: [Phi] 30mm
5. Maximum spacing between upper and lower folding rollers: 165mm
The center distance between the 6 and two folding rollers: 150mm
The center distance between the 7 and two folding rollers: 450mm
8, pressure test machine pressure plate size: [Phi] 155mm
9. The maximum spacing between the upper and lower pressure plates: 230mm
10, the diameter and maximum stroke of the piston: 125mm x 80mm
11, motor power: three phase 0.75 KW
12, the outer size (length, width and height) is about 850 x 600 x 1340mm.
13, the net weight of the digital cement pressure tester is about 400Kg.
