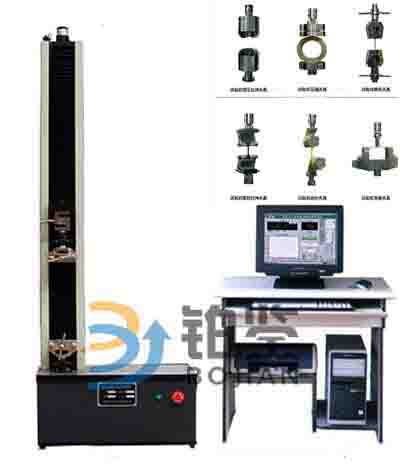

Product name：BJDW-50N winding film tensile test machine
Product model：
Product range：
Immediate consultation
Online Message
It is mainly suitable for testing mechanical properties such as tensile force, elongation at break, deformation and anti piercing performance of stretch wrap, plastic film, sheet and other materials.
The test machine is based on the test method of BB / T 0024-2004 "stretch wrap film for transport packaging".
The tester is made according to the standard of GB / T 16491-2008 electronic universal testing machine.
The test machine is checked and checked according to GB/T12160-2002's "uniaxial test extensometer" and GB/T16825-1997 "tensile testing machine".
1. Style: single arm
2. Test force: 50N
3. Range: 1%-100%;
4. The accuracy of test force; + 1%
5. The accuracy of the test force; 0.001N
6. Test machine level: Level 1
7. Displacement resolution: 0.01mm;
8. The accuracy of displacement measurement: 0.5%;
9. Stretch stroke: 600mm
10, compression stroke: 600mm
11, displacement speed control range is 0.01mm/min to 500mm/min.
12. The precision of the displacement speed control: 0.5%;
Size 13, test machine: about 640mm "420mm" 1550mm
14, test machine weight: about 120KG
15, appearance: should meet the requirements of GB/T2611.
16, complete set: meet the standard requirements
17, protection function: the tester has overload protection function.
18. Power supply: 220V, 50Hz
Five, the environment and working conditions of the winding membrane tensile tester.
1, the room temperature is 10 -35, the relative humidity is no more than 80%.
2, there is no vibration, no corrosive media and clean environment without strong electromagnetic interference.
3, the fluctuation range of the supply voltage should be within 10% of the rated voltage.
4. Install it correctly on a solid basis.
