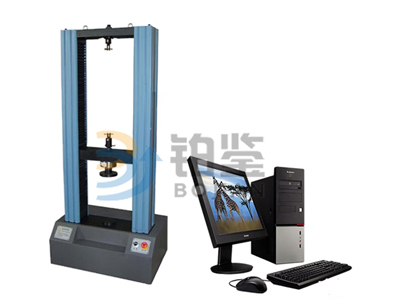

Product name：BJDW-100KN microcomputer controlled electronic universal testing machine
Product model：
Product range：
Immediate consultation
Online Message
It is suitable for testing tensile, compression, bending, shearing, tearing, stripping, compression, bending and other mechanical properties of metal, nonmetal and composite materials.
The tester is made according to the standard of GB / T 16491-2008 electronic universal testing machine.
The test machine is checked and checked according to GB/T12160-2002's "uniaxial test extensometer" and GB/T16825-1997 "tensile testing machine".
1, style: double column gate
2, the test force is 100KN, which is 1, 2, 5, 10, four.
3, range: 2%-100%; (Universal); 0.5%-100% (Gao Pei).
4, accuracy of test force; + 1% (general matching); + 0.5% (Gao Pei).
5. The accuracy of the test force; 1N
6, test machine level: 1 level (general matching); 0.5 level (Gao Pei).
7. Displacement resolution: 0.01mm;
8. The accuracy of displacement measurement: 0.5%;
9, stretching stroke: 600mm (customized according to customer needs).
10, microcomputer control electronic universal testing machine compression stroke: 600mm (customized according to customer needs).
11, displacement speed control range: 0.1mm/min to 300mm/min (general matching); 0.01mm/min to 300mm/min (Gao Pei).
12. The precision of the displacement speed control: 0.5%;
Size 13, test machine: About 780mm "560mm" 1850mm
14, test machine weight: about 500KG
15, the appearance of microcomputer controlled universal testing machine should comply with the requirements of GB/T2611.
16, complete set: meet the standard requirements
17, protection function: the tester has overload protection function.
18. Power supply: 220V, 50Hz
